Details

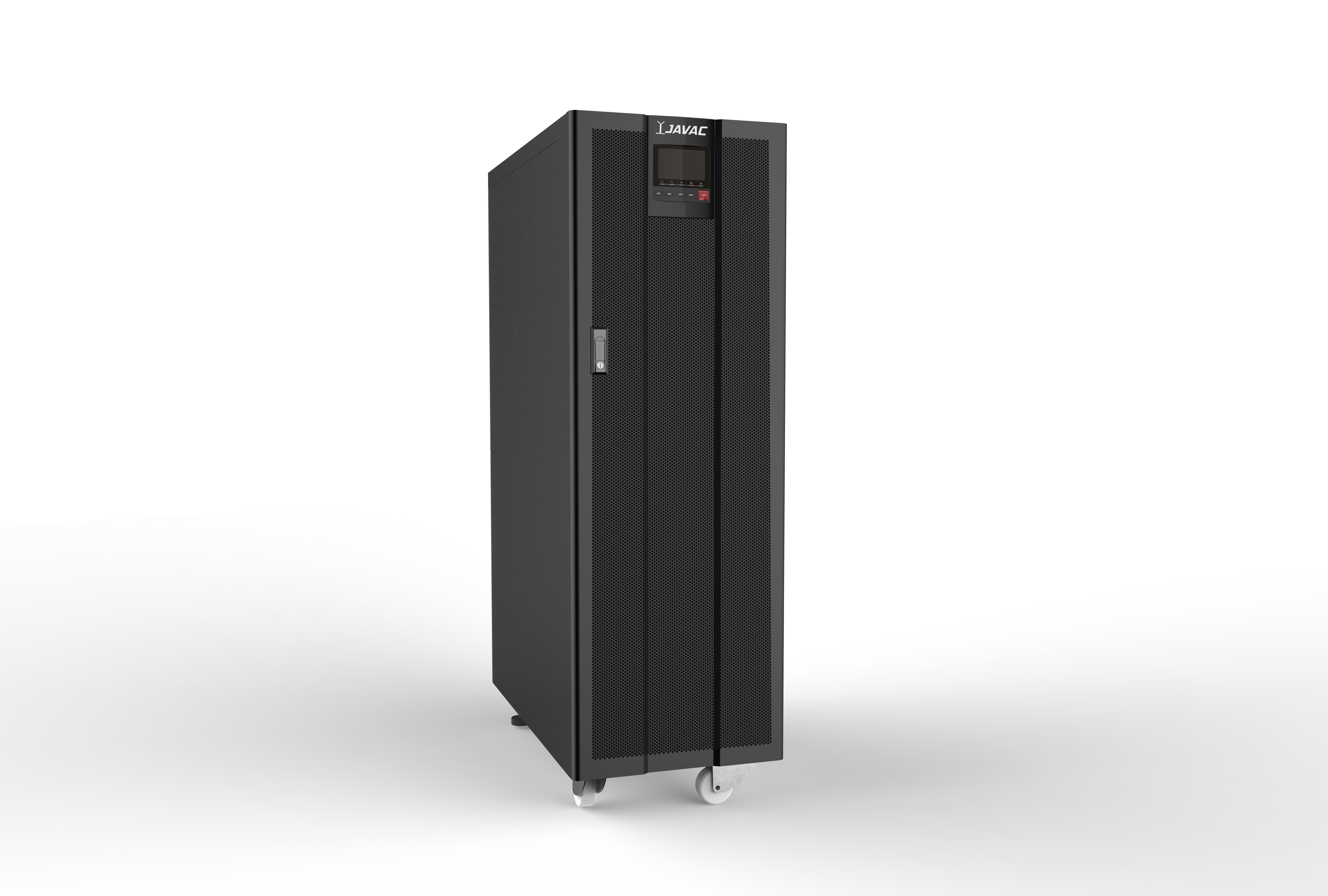

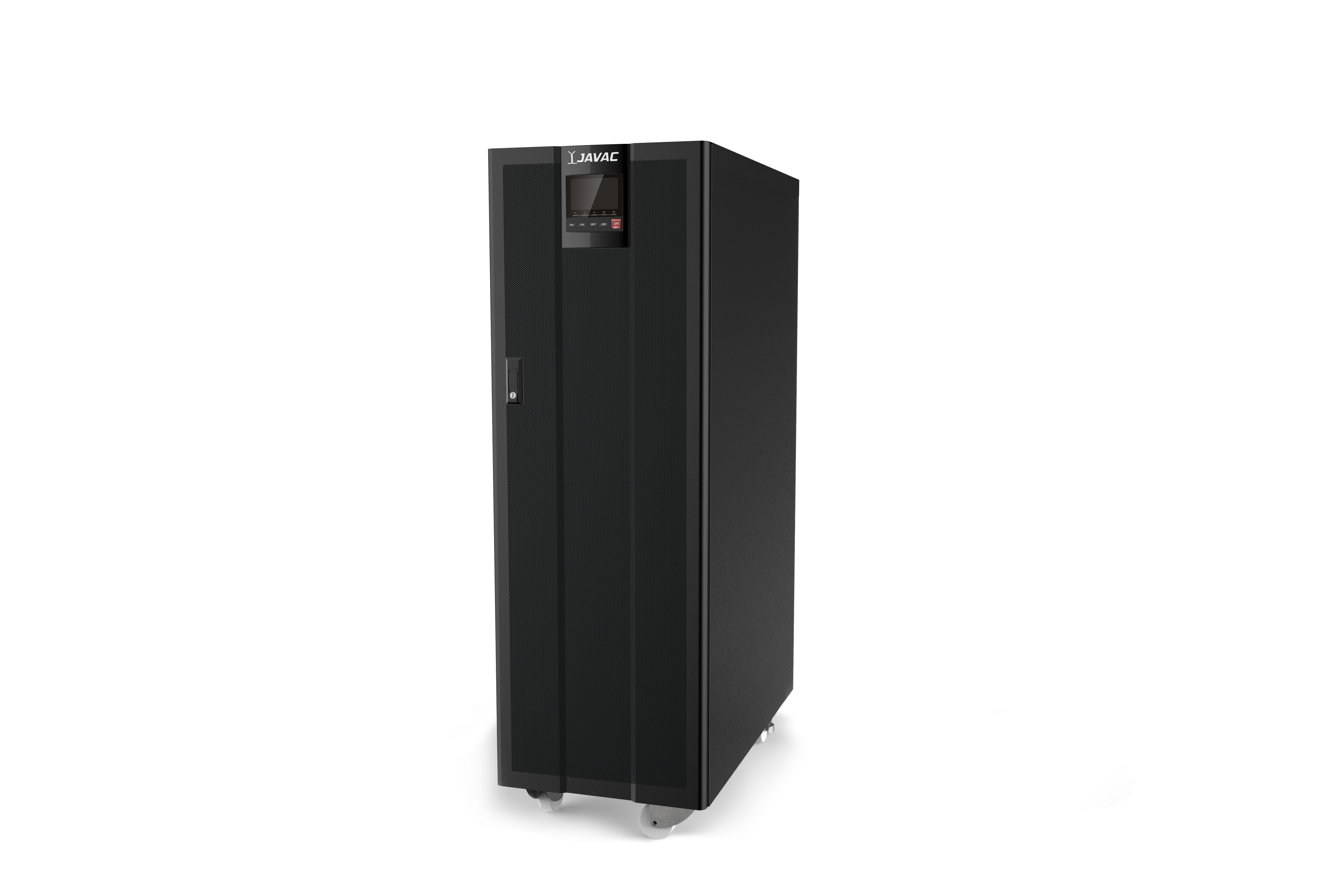

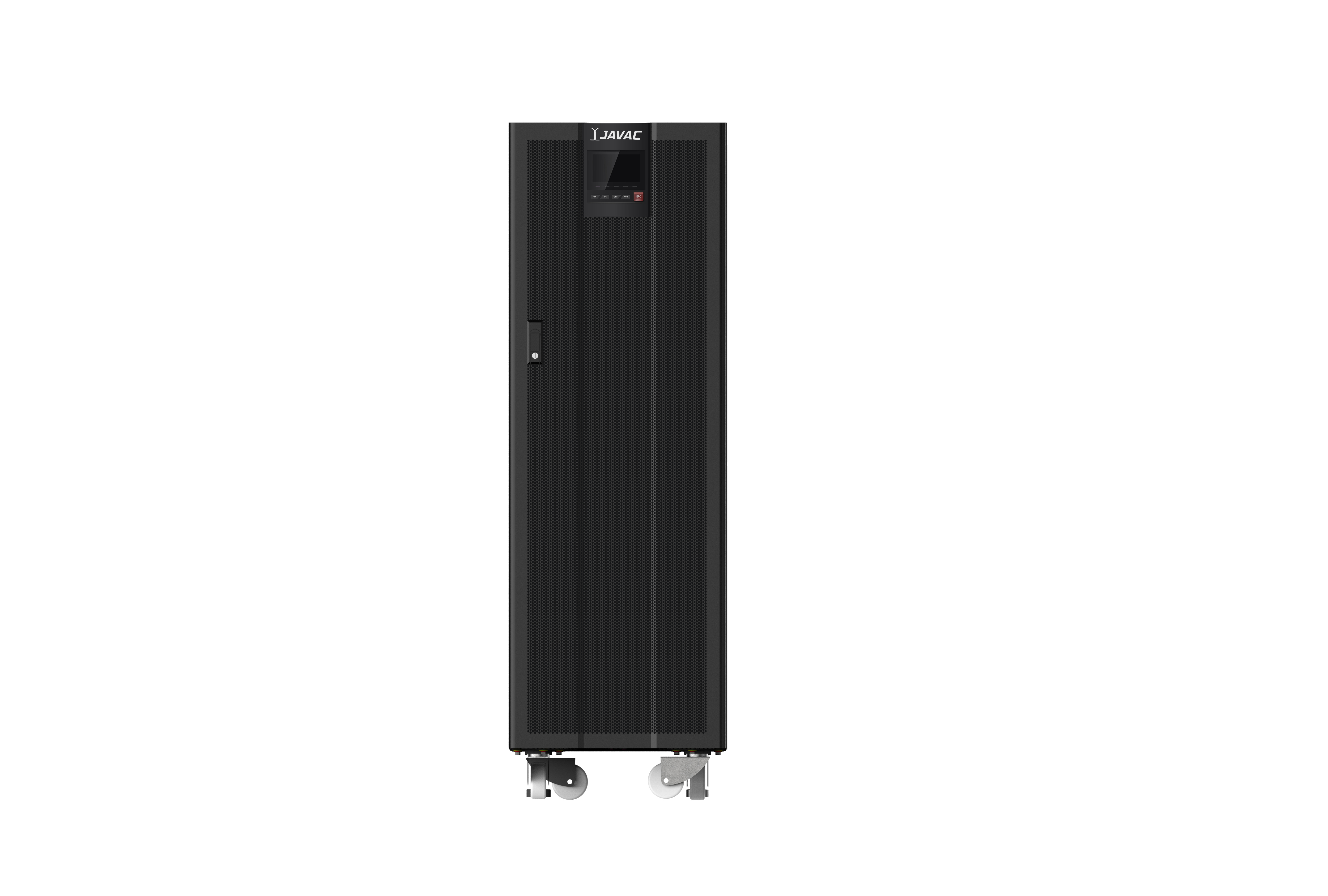

-Online power interrupter for capacity 60:200 KVA

-Third generation inverter,IGBT technology

-The overall efficiency of the device reaches 96.5%

-Power factor up to 1.

-Operating temperature up to 50°C while maintaining stable operating efficiency.

-Complete control in the event of malfunctions and tracking their path.

-It contains a colorful LED strip

-Fault tracking management to analyze the fault appropriately, so that the waveform is recorded before and after the fault point for a period of 200 ms, which easily detects the fault point.

Three-stage battery charging, which increases the lifespan of the batteries

-Intelligent battery management with multiple pcs28:48 settings thus allowing the battery to be removed instead of replaced.

-A special alarm key for each feature of the device.

-Complete management of spare parts replacement history and schedule for each part.

-Dedicated alarm in case of high cabin temperature.

-A smart control system that contains 5 dry contacts for entry and 3 dry contacts for exit, knowing that entry contains more than 10 functions and exit more than 18 functions, and this allows for stability when installing.

-An intelligent control system that allows the UPS to control the generator by connecting and disconnecting it by sending waves to it and also taking part of the batteries’ energy to calculate the generator’s performance.

- Dust removal feature that saves parts from damage.

- Possibility of controlling the frequency Hz 50/60, Hz 60/50

VRLA, lithium batteries and suitable design.

-The on/off switch is designed to avoid wrong disconnections.

-User-friendly interface with curves and status indicators.

- Touch screen with dimensions of 7 * 4.3 inches to ensure that information is displayed on the screen.

-Responsive system properties bar for easy control and display of properties.

-Multi-languages: English, French, Italian.

-High security rate with the ability to create a security code to protect against any problem.

-High data storage capacity of up to 10,000 pcs
